This page is a tutorial for the (GammaBayes)[https://github.com/lpin0002/GammaBayes] and the original notebook can be found within the docs/tutorials folder within the GitHub repository.

Hyperparameters, Parameter, ParameterSet, and ParameterSetCollection

Along with the observational priors contained within DiscreteLogPrior we need priors on the hyperparameters dictating the shapes of the observational priors.

GammaBayes treats these two distributions differently so that DiscreteLogPrior can be as optimised as possible seeing as it needs to be used to evaluate three dimensional integrals tens of millions of times for large observation runs.

Additionally, despite both being priors they just behave differently within GammaBayes and this tutorial will detail hte various behaviours of the Parameter class which houses these hyperparameter priors and the two collection classes for it.

Parameter

Parameter has three general use cases:

1. A discrete distribution over a one-dimensional axis that is either linearly or log10 spaced

2. A continuous distribution defined between two bounds in either linear or log10 space

3. A custom distribution implemented using scipy

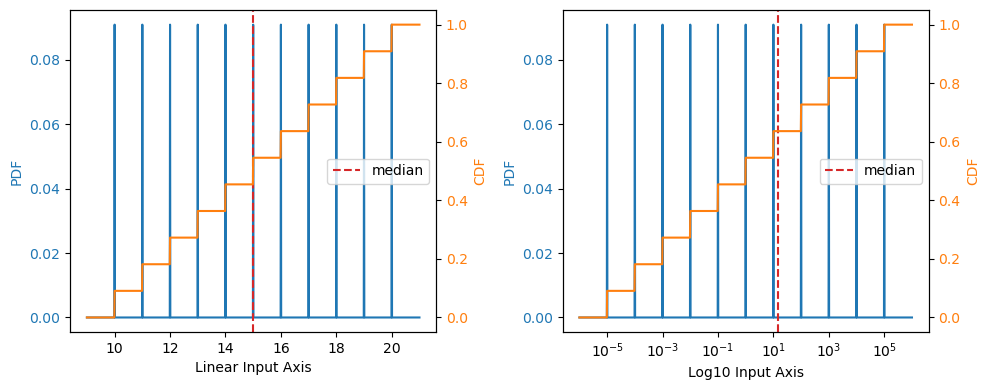

Parameter as a discrete distribution

from gammabayes import Parameter


discrete_linear_parameter = Parameter(discrete=True, bounds=[10, 20], bins=11, scaling='linear')
discrete_linear_parameter

/Users/lpin0002/anaconda3/envs/testofwest/lib/python3.12/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

{'discrete': True,
 'bins': 11,
 'scaling': 'linear',
 'default_value': 1.0,
 'num_events': 1,
 'axis': array([10., 11., 12., 13., 14., 15., 16., 17., 18., 19., 20.]),
 'parameter_type': 'None',
 'bounds': [10.0, 20.0],
 'custom_dist': False,
 'distribution': <scipy.stats._distn_infrastructure.rv_sample at 0x1954f4140>,
 'transform_scale': 11,
 'rvs_sampling': False}

discrete_log10_parameter = Parameter(discrete=True, bounds=[1e-5, 1e5], bins=11, scaling='log10')
discrete_log10_parameter

{'discrete': True,
 'bins': 11,
 'scaling': 'log10',
 'default_value': 1.0,
 'num_events': 1,
 'axis': array([1.e-05, 1.e-04, 1.e-03, 1.e-02, 1.e-01, 1.e+00, 1.e+01, 1.e+02,
        1.e+03, 1.e+04, 1.e+05]),
 'parameter_type': 'None',
 'bounds': [1e-05, 100000.0],
 'custom_dist': False,
 'distribution': <scipy.stats._distn_infrastructure.rv_sample at 0x1987edcd0>,
 'transform_scale': 11,
 'rvs_sampling': False}

from matplotlib import pyplot as plt
import numpy as np

linear_input_axis = np.linspace(9, 21, 1201)
log10_input_axis = np.logspace(-6, 6, 1201)



# Create the figure and axes
fig, ax = plt.subplots(1, 2, figsize=(10, 4))

# Plot on the first axis
ax1 = ax[0]
ax1.plot(linear_input_axis, discrete_linear_parameter.pdf(linear_input_axis), c='tab:blue')
ax1.set_xlabel('Linear Input Axis')
ax1.set_ylabel('PDF', c='tab:blue',)
ax1.tick_params(axis='y', labelcolor='tab:blue',)


# Create a twin y-axis sharing the same x-axis
ax1_twin = ax1.twinx()
ax1_twin.plot(linear_input_axis, discrete_linear_parameter.cdf(linear_input_axis), c='tab:orange')
ax1_twin.set_ylabel('CDF', c='tab:orange', )
ax1_twin.tick_params(axis='y', labelcolor='tab:orange', )


ax1.axvline(discrete_linear_parameter.median, ls='--', c='tab:red', label='median')

ax1.legend()

# Plot on the second axis
ax2 = ax[1]
ax2.plot(log10_input_axis, discrete_log10_parameter.pdf(log10_input_axis), c='tab:blue')
ax2.set_xlabel('Log10 Input Axis')
ax2.set_xscale('log')
ax2.set_ylabel('PDF', c='tab:blue',)
ax2.tick_params(axis='y', labelcolor='tab:blue',)

# Create a twin y-axis sharing the same x-axis
ax2_twin = ax2.twinx()
ax2_twin.plot(log10_input_axis, discrete_log10_parameter.cdf(log10_input_axis), c='tab:orange')
ax2_twin.set_ylabel('CDF', c='tab:orange', )
ax2_twin.tick_params(axis='y', labelcolor='tab:orange', )


ax2.axvline(discrete_linear_parameter.median, ls='--', c='tab:red', label='median')
ax2.legend()


# Show the plot
plt.tight_layout()
plt.show()

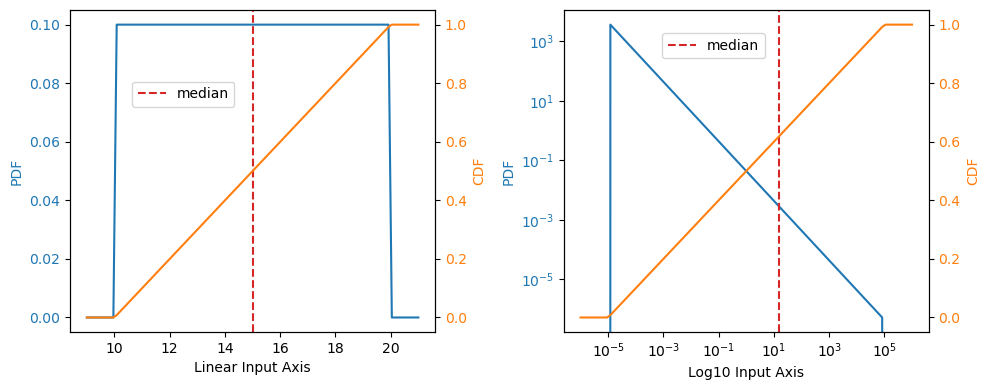

Parameter as a continuous distribution

continuous_linear_parameter = Parameter(discrete=False, bounds=[10, 20], scaling='linear')
continuous_linear_parameter

{'discrete': False,
 'bins': 11,
 'scaling': 'linear',
 'default_value': 1.0,
 'num_events': 1,
 'axis': None,
 'parameter_type': 'None',
 'bounds': [10.0, 20.0],
 'custom_dist': False,
 'distribution': <scipy.stats._distn_infrastructure.rv_continuous_frozen at 0x198f06c90>,
 'rvs_sampling': True}

continuous_log10_parameter = Parameter(discrete=False, bounds=[1e-5, 1e5], scaling='log10')
continuous_log10_parameter

{'discrete': False,
 'bins': 11,
 'scaling': 'log10',
 'default_value': 1.0,
 'num_events': 1,
 'axis': None,
 'parameter_type': 'None',
 'bounds': [1e-05, 100000.0],
 'custom_dist': False,
 'distribution': <scipy.stats._distn_infrastructure.rv_continuous_frozen at 0x198fa53d0>,
 'rvs_sampling': True}

continuous_log10_parameter.distribution.logpdf(1e-2)

1.4685526477460895

from matplotlib import pyplot as plt
import numpy as np

linear_input_axis = np.linspace(9, 21, 101)
log10_input_axis = np.logspace(-6, 6, 101)



# Create the figure and axes
fig, ax = plt.subplots(1, 2, figsize=(10, 4))

# Plot on the first axis
ax1 = ax[0]
ax1.plot(linear_input_axis, continuous_linear_parameter.pdf(linear_input_axis), c='tab:blue')
ax1.set_xlabel('Linear Input Axis')
ax1.set_ylabel('PDF', c='tab:blue',)
ax1.tick_params(axis='y', labelcolor='tab:blue',)


# Create a twin y-axis sharing the same x-axis
ax1_twin = ax1.twinx()
ax1_twin.plot(linear_input_axis, continuous_linear_parameter.cdf(linear_input_axis), c='tab:orange')
ax1_twin.set_ylabel('CDF', c='tab:orange', )
ax1_twin.tick_params(axis='y', labelcolor='tab:orange', )


ax1.axvline(discrete_linear_parameter.median, ls='--', c='tab:red', label='median')
ax1.legend(loc=[0.17, 0.7])

# Plot on the second axis
ax2 = ax[1]
ax2.plot(log10_input_axis, continuous_log10_parameter.pdf(log10_input_axis), c='tab:blue')
ax2.set_xlabel('Log10 Input Axis')
ax2.set_xscale('log')
ax2.set_ylabel('PDF', c='tab:blue',)
ax2.tick_params(axis='y', labelcolor='tab:blue',)
ax2.set_yscale('log')

# Create a twin y-axis sharing the same x-axis
ax2_twin = ax2.twinx()
ax2_twin.plot(log10_input_axis, continuous_log10_parameter.cdf(log10_input_axis), c='tab:orange')
ax2_twin.set_ylabel('CDF', c='tab:orange', )
ax2_twin.tick_params(axis='y', labelcolor='tab:orange', )


ax2.axvline(discrete_linear_parameter.median, ls='--', c='tab:red', label='median')
ax2.legend(loc=[0.27, 0.85])


# Show the plot
plt.tight_layout()
plt.show()

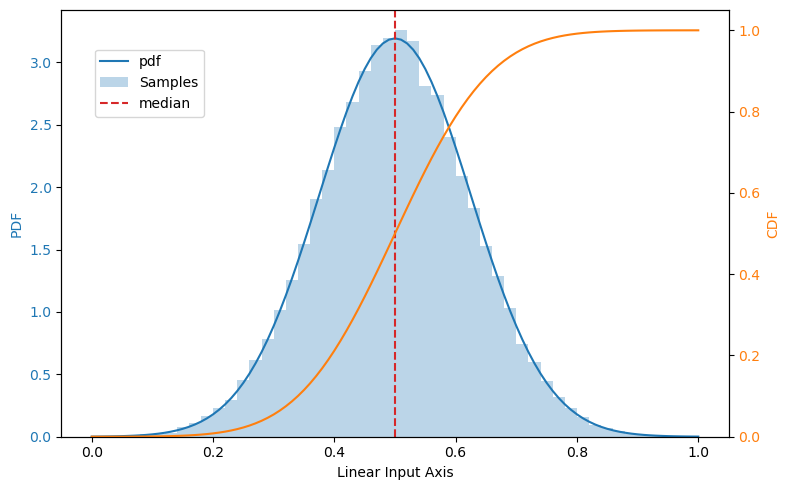

Parameter with a custom distribution

continuous_custom_parameter = Parameter(discrete=False, custom_dist_name='norm', custom_dist_kwargs={'loc':0.5, 'scale':0.125})
continuous_custom_parameter

{'custom_dist_name': 'norm',
 'custom_dist_kwargs': {'loc': 0.5, 'scale': 0.125},
 'discrete': False,
 'bins': 11,
 'scaling': 'linear',
 'default_value': 1.0,
 'num_events': 1,
 'axis': None,
 'parameter_type': 'None',
 'bounds': [0.0, 1.0],
 'custom_dist': True,
 'distribution': <scipy.stats._distn_infrastructure.rv_continuous_frozen at 0x19bb04920>,
 'rvs_sampling': False}

from matplotlib import pyplot as plt
import numpy as np
from scipy.stats import uniform

linear_input_axis = np.linspace(0, 1, 101)

uniform_samples = uniform().rvs(50000)

# Create the figure and axes
fig, ax = plt.subplots(1, 1, figsize=(8, 5))

# Plot on the first axis
ax1 = ax
ax1.plot(linear_input_axis, continuous_custom_parameter.pdf(linear_input_axis), c='tab:blue', label='pdf')
ax1.set_xlabel('Linear Input Axis')
ax1.set_ylabel('PDF', c='tab:blue',)
ax1.tick_params(axis='y', labelcolor='tab:blue',)


ax1.hist([continuous_custom_parameter.unitcube_transform(sample) for sample in uniform_samples],
         alpha=0.3, density=True, bins=linear_input_axis[::2], label='Samples')
ax1.axvline(continuous_custom_parameter.median, ls='--', c='tab:red', label='median')

# Create a twin y-axis sharing the same x-axis
ax1_twin = ax1.twinx()
ax1_twin.plot(linear_input_axis, continuous_custom_parameter.cdf(linear_input_axis), c='tab:orange')
ax1_twin.set_ylabel('CDF', c='tab:orange', )
ax1_twin.tick_params(axis='y', labelcolor='tab:orange', )
ax1_twin.set_ylim([0, None])
ax1.legend(loc=[0.05, .75])
# Show the plot
plt.tight_layout()
plt.show()
